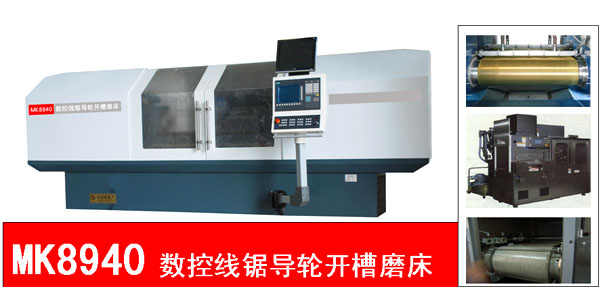

| MK8940 數控線鋸導輪開槽磨床 |
|
|
|
一、用途 Purpose of the machine
MK8940型線鋸導輪開槽專用磨床，主要用于太陽能光伏行業硅棒切片線鋸的聚氨酯導輪的磨削開槽，同樣也可用于其他行業的線鋸導輪開槽。
The machine MK 8940x1200 is specially designed for photovoltaic industry to slot through polyurethane guiding wheel grinding with silicon bar cutting scroll saws. It also can be used for slotting with wire saws.
|
|
|
| 二、功能特點 Features |

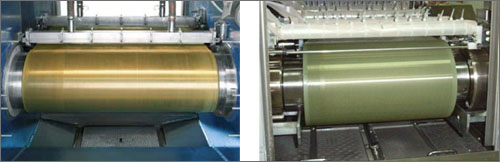

距達到1200mm，磨削尺寸大，可達 Φ350mm X 1020mm，使用范圍廣，基本可覆蓋國際幾大硅棒切片線鋸機型的聚氨酯導輪開槽。如：Meyer Burger（梅耶博格爾公司）的DS262.DS264.DS265.DS271,日本NTC的D442.PV800,HCT公司的B5.B6等其他機 型。主要部件采用國際品牌產品，如SIEMENS的數控系統和電機，德國海德漢（HEIDENHAIN）的光柵尺等，加工精度高。
The machine has characteristics of a wide range use and big size grinding, with its center distance reaching 1200mm, maximum diameter 350mm and length 1020mm, capable of covering major international manufacturers’silicon bar cutting machines with scroll saw， including DS262, DS264,DS265, DS271 by Meyer Burger, Switzerland, D442, PV800 by NTC, Japan, and by HCT etc.
Being incorporated with world well-known brands into the machine, such as CNC system & motors from SIEMENS, grating scale from HEIDENHAIN and so on, the machine can obtain a high machining accuracy. |
| 三、機床主要規格參數 Main specifications |
| 安裝直徑（Max. mounting diameter）: |
Φ400mm |
| 距（Max. center distance）: |
1200mm |
| 中心高度（center height）: |
210mm |
| 可磨削直徑（diameter to be ground）: |
Φ100-Φ350mm |
| 可磨削螺紋長度（Max.thread length to be ground）: |
1020mm |
| 可磨削螺紋螺距（thread pitch to be ground）: |
0.2-6mm |
| 工件轉速（revolving speed）: |
（無級free）1-60rpm |
| 工作臺縱向行程（Max. longitudinal traverse of table）: |
1300mm |
| 砂輪架橫向移動量 （across traverse of grinding wheel stock): |
195mm |
| 砂輪尺寸（grinding wheel dimensions）: |
寬度:16,63mm |
| |
外徑（O.D.）:Φ500mm |
| |
內徑（I.D）: Φ203mm |
| 砂輪線速度 （linear velocity of grinding wheel）: |
50m/s |
| 工件重量 （Max. weight of workpiece）: |
500kg |
| 機床數控系統 （CNC system of the machine）: |
SIEMENS 802 DSL |
| 線性光柵尺測量分辨率（Measuring resolution of linear grating scale ）: |
0.0001mm |
|
| 四、機床主要工作精度 Main working accuracies |
|
相鄰螺線齒距偏差 error of teeth spacing of adjacent spiral: ±0.001mm (Max ±0.003mm)
全長齒距累積偏差(1020mm)accumulative error of teeth spacing in whole length:±0.015mm
螺紋中徑徑向跳動 radial runout of effective diameter:< ±0.002mm
|
